Twin all-inverter compressors
15–120 Hz with vapor injection and HiPOR™ oil return.
LG · Chillers

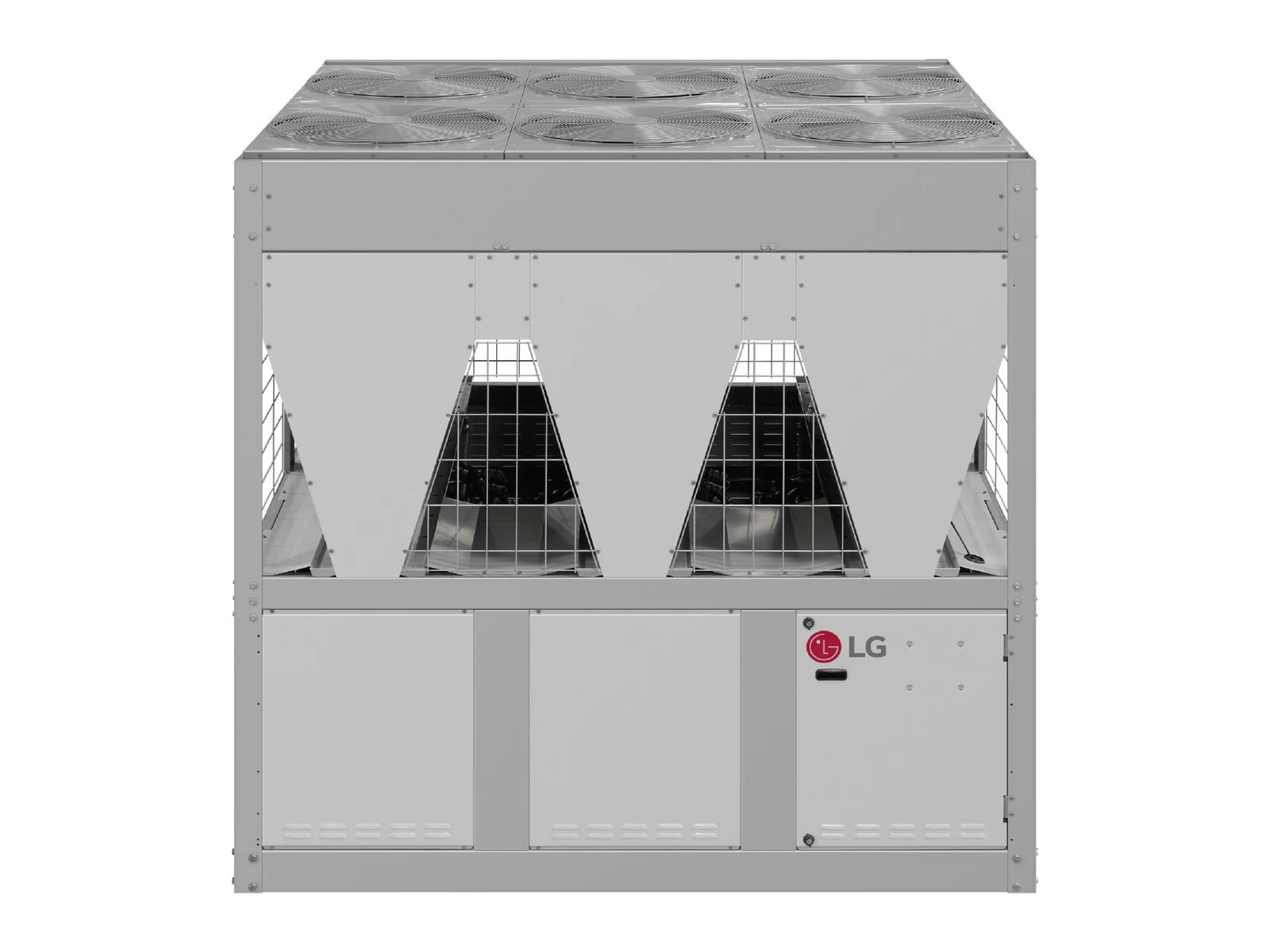

LG Air-Cooled Inverter Scroll Chiller
Modular inverter chillers built on VRF compressor technology. Add modules as the building grows.
18–63TR
15–120Hz
500m remote HMI
LG Air-Cooled Inverter Scroll Chiller model numbers (18.5 TR (ACAH020), 21.0 TR (ACAH023))
Every model below is available with supply, installation and AMC. Ask for the current price of any model.
ACAH020(L,H)ETBACAH023(L,H)ETBACAH033(L,H)ETBACAH040(L,H)ETBACAH045(L,H)ETBACAH050(L,H)ETBACAH060(L,H)ETBACAH067(L,H)ETB
Power supply
Key features
Modular
Install modules to suit the space and load.
R410A
Zero ozone depletion refrigerant.
Why it stands out
2× inverter
7 °C
Steady leaving water
Inverter control holds outlet water temperature flat.
500 m
Remote HMI
Mount the controller in the plant room up to 500 m away.
Specifications
| Capacity | 18 ~ 63 TR (380 V / 460 V); 18 ~ 55 TR (220 V) |
|---|---|
| Compressor | Twin all-inverter scroll, 15 ~ 120 Hz |
| Refrigerant | R410A |
| Remote control | HMI up to 500 m |
