AC Manager 5
Up to 32 ACP / AC Smart controllers on one PC, tablet or phone dashboard.
LG · Controls & BMS
LG Central Controllers
Run every indoor unit in the building from one screen: schedules, energy reports, air quality and alarms.
8,192units max.
10.2"AC Smart 5 touch
BACnetIP built in
Key features
Scheduling & energy
Weekly schedules, energy navigation and reports.
Scales with the building
From 64 units on AC ez touch to 8,192 on AC Manager 5.
Why it stands out
8,192 units
PM live
Air quality view
Track indoor air across schools, malls and offices from the central screen.
0 gateway
BMS built in
ACP 5 and AC Smart 5 speak BACnet IP and Modbus TCP directly.
Specifications
| Interface | Indoor units | |
|---|---|---|
| AC ez touch (PACEZA000) | 5" touchscreen | 64 |
| AC Smart 5 (PACS5A000) | 10.2" touchscreen, 1024×600 | 128 |

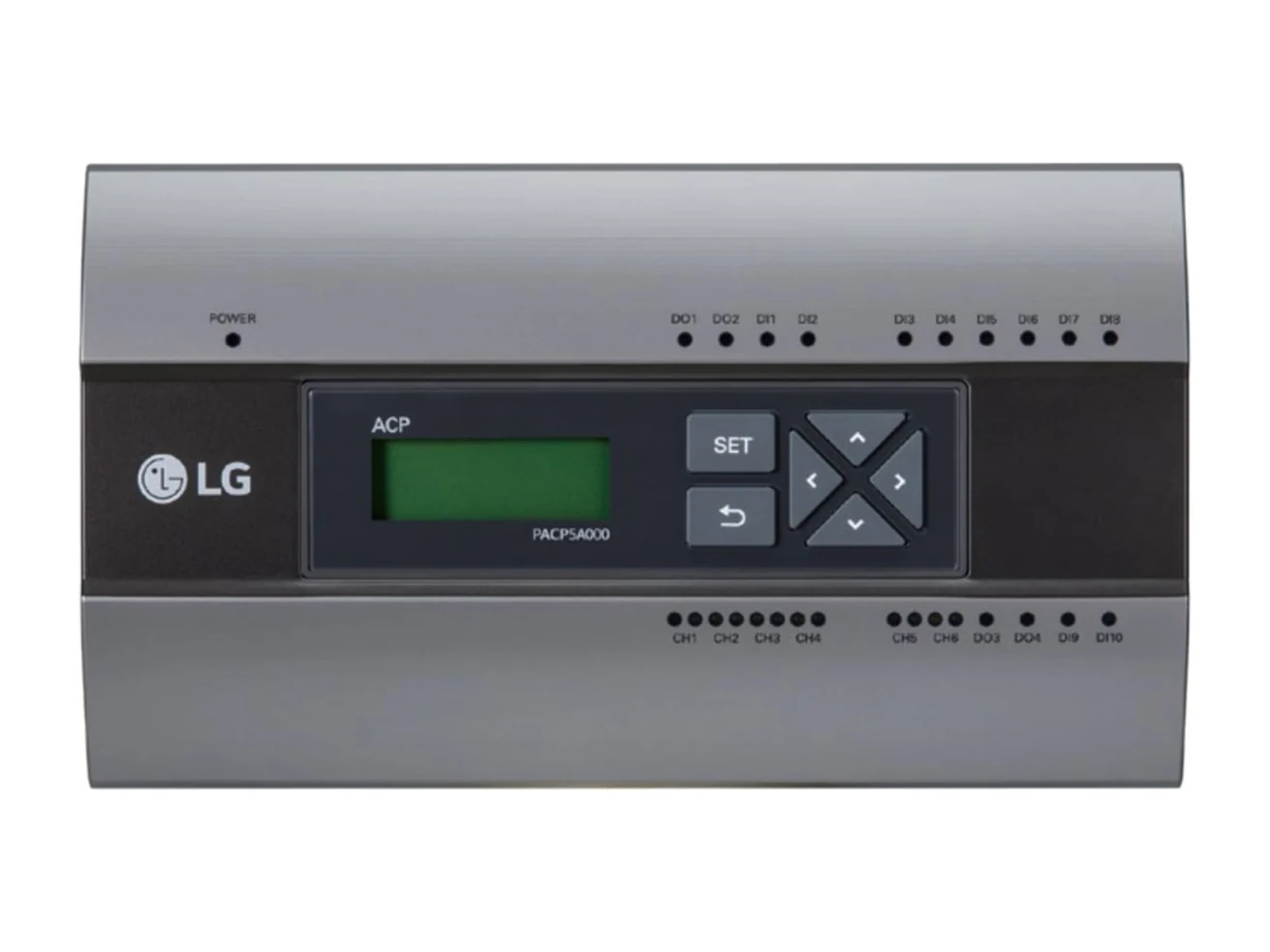

| ACP 5 (PACP5B000) | Web browser | 256 |
| AC Manager 5 (PACM5A000) | PC software | 8,192 (via 32 ACP / AC Smart) |
