One unit, three rooms
Replaces a row of split outdoor units on the façade with a single slim unit.
LG · Multi i Home
LG MULTI i Home
One true cooling solution for luxury homes and apartments. A single slim outdoor unit runs up to three rooms.
3rooms per outdoor unit
45%less energy*
48dB(A) indoor
LG MULTI i Home model numbers (2.0T, 2.5T, 3.0T, 4.0T)
Every model below is available with supply, installation and AMC. Ask for the current price of any model.
Z2UQ27GFA1Z2UQ32GFA0Z3UQ37GFA0Z3UQ51GFA0ZMNQ12GSJA0ZMNQ18GSKA0ZMNQ24GSKA0ZMNQ12GTUW0ZMNQ12GTUC0ZMNQ18GTTW0ZMNQ18GTTC0ZMNQ24GTTW0ZMNQ24GTTC0ZMNQ12GTUA0ZMNQ18GTTA0ZMNQ24GTTA0ZMNQ18GL5A0ZMNQ24GL6A0

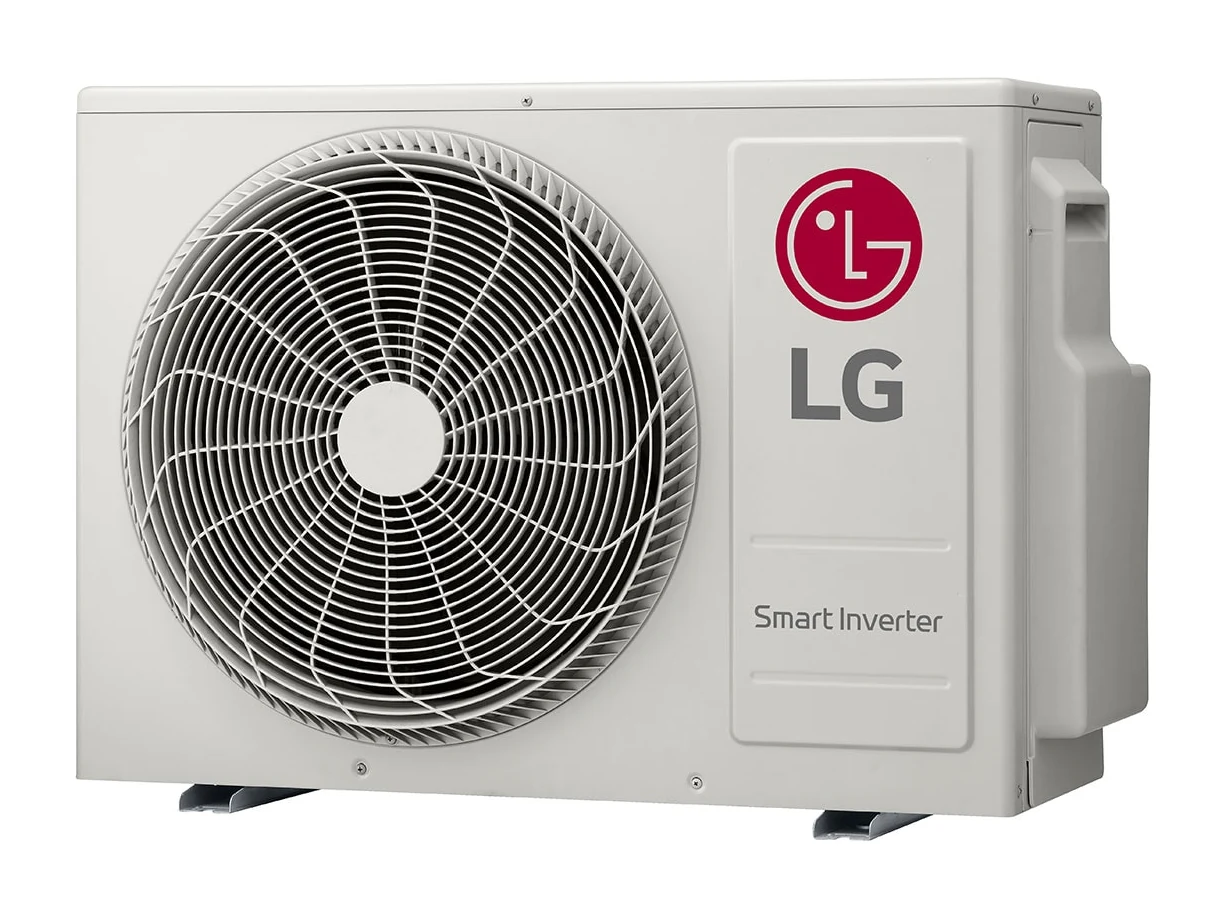

Outdoor unit
Key features
Space saving
One compact outdoor unit instead of three keeps balconies and façades clean.
Energy cost saving
LG states running one indoor unit uses 45% less energy than one single split, and three indoor units 24% less than three splits.
High reliability
Black Fin hydrophilic coil, twin rotary and R1 scroll compressors, works to 52°C.
Mix indoor types
Wall mounted, 1-way cassette and low static duct units in one system.
ThinQ Wi-Fi
Built-in Wi-Fi on select 1-way cassettes and app control.
Plasmaster Ionizer
Select indoor units with Plasmaster Ionizer and air purification kit.
Why it stands out
1 outdoor unit
45 % less*
Lower bills
Running one room uses 45% less power than a 3/5-star single split; three rooms use 24% less than three splits.
15 m
Long-throw wall units
A 25% larger skew fan pushes air up to 15 metres.
48 dB(A)
Quiet nights
Night mode cuts noise by up to 22% compared with normal mode.
99.9 %
Plasmaster Ionizer++
Removes over 99.9% of adhering bacteria within 60 minutes (TÜV Rheinland verified). The HD filter is silver-ion coated.
Specifications
| 2.0 TR | 2.5 TR | 3.0 TR | 4.0 TR | |
|---|---|---|---|---|
| §Outdoor unit | ||||
| Model | Z2UQ27GFA1 | Z2UQ32GFA0 | Z3UQ37GFA0 | Z3UQ51GFA0 |
| Cooling capacity, min–rated–max (kW) | 1.8–7.0–7.8 | 1.8–8.7–9.5 | 1.8–10.4–10.9 | 1.8–13.9–15.0 |
| Power input, min–rated–max (kW) | 0.31–2.26–2.96 | 0.32–2.42–3.08 | 0.32–3.30–3.64 | 0.34–4.63–5.18 |
| SEER (W/W) | 6.7 | 7.0 | 6.8 | 6.6 |
| Max. indoor units | 2 | 2 | 3 | 3 |
| Recommended combinations (kBtu/h) | 12+12, 12+18 | 12+18, 18+18, 12+24 | 12+12+12, 12+12+18 | 12+18+18, 18+18+18, 12+18+24 |
| Compressor | Twin rotary | Twin rotary | Twin rotary | R1 scroll |
| Refrigerant / precharge | R32 / 900 g | R32 / 1,200 g | R32 / 1,400 g | R32 / 2,100 g |
| Sound dB(A) | 56 | 56 | 57 | 59 |
| Circuit breaker (A) | 25 | 25 | 25 | 32 |
| Body W×H×D (mm) | 770×545×288 | 870×650×330 | 870×650×330 | 950×834×330 |
| Net weight (kg) | 29.5 | 44.5 | 45.8 | 61.2 |
| §Piping | ||||
| Total piping max. (m) | 50 | 50 | 60 | 70 |
| Each branch max. (m) | 25 | 25 | 25 | 25 |
| Height ODU–IDU max. (m) | 15 | 15 | 15 | 15 |
| Height IDU–IDU max. (m) | 7.5 | 7.5 | 7.5 | 7.5 |
| Operating range (°C DB) | −5 ~ 52 | −5 ~ 52 | −5 ~ 52 | −5 ~ 52 |
| Power supply | 230 V, 1Ø, 50 Hz | 230 V, 1Ø, 50 Hz | 230 V, 1Ø, 50 Hz | 230 V, 1Ø, 50 Hz |
When indoor-to-outdoor combination ratio exceeds 100%, each indoor unit's capacity may reduce. *LG claim, 1 IDU running vs one single split.
